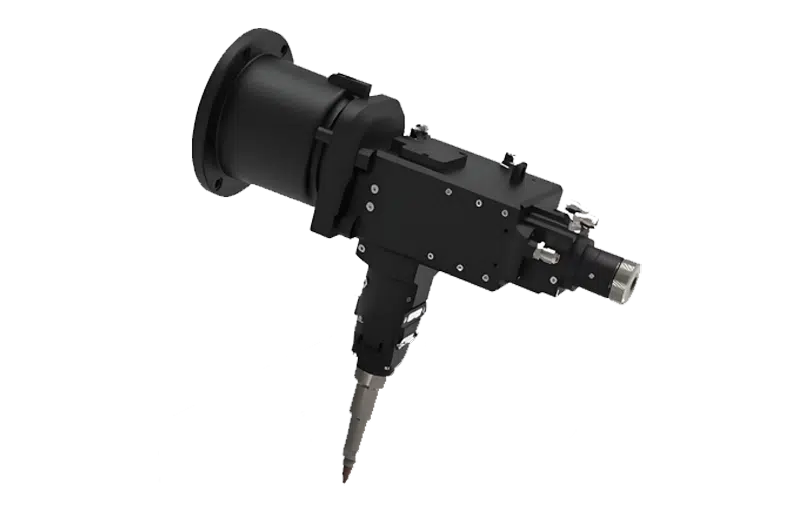

RTC-12036M

High-power pipe cutting intelligent cutting head. The 90 degree right angle optical path design can reduce the fiber swing angle and ensure cutting stability. New mechanical structure design, capable of supporting up to 400MM × 400mm I-beam cutting. Standard process monitoring, intelligent perforation and other functions are equipped, and multiple sets of sensors ensure efficient, stable, and safe production

Autofocusing Laser Heads

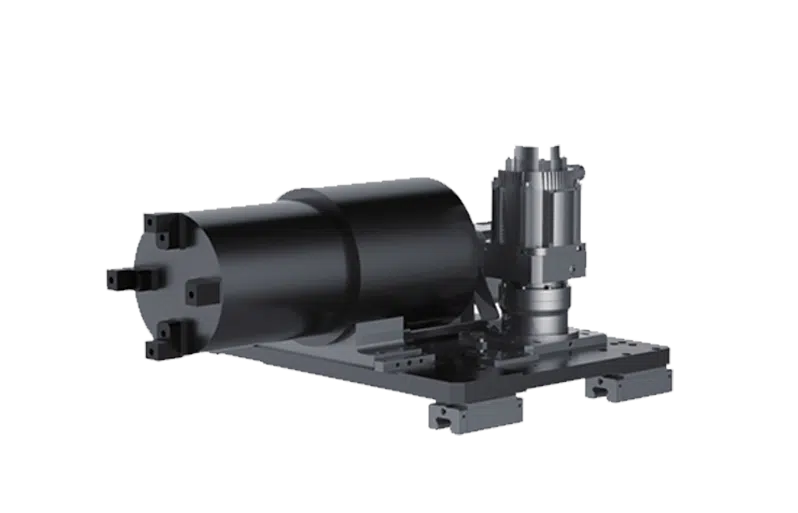

The chuck can automatically center when holding the work piece, pneumatic clamp, large and stable clamp strength, ensure cutting accuracy; special support pallet, avoid sagging deformation, improving cutting accuracy and extend the chuck life.

Automatic centering

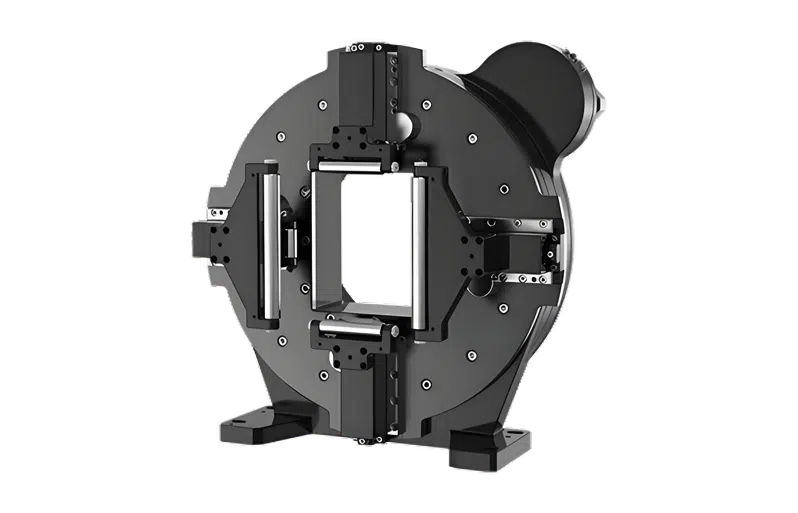

Wide range of pipe clamping, the maximum clamping diameter is 360mm, round pipe Ø20-220mm, square pipe Ø 20-150mm, can cut various shapes such as I-beam, channel steel, angle steel, oval pipe, waist-shaped pipe, polygonal pipe, etc.

Wide range of chuck clamping

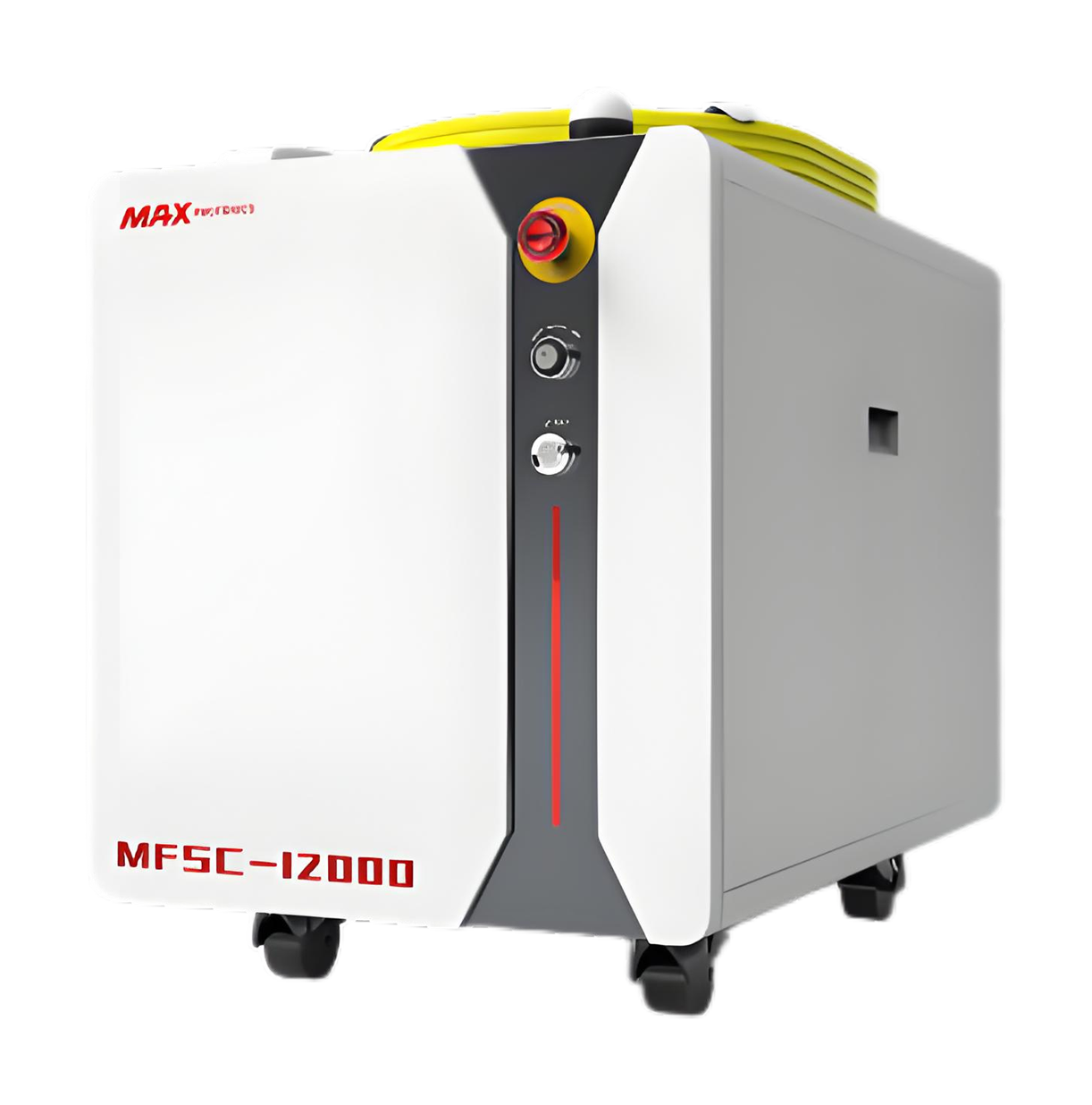

Adopt water cooling and modular design, highly-integrated system, free of maintenance, high reliability, high energy density, high beam quality and longer service life, maintenance-free operation for laser cutting

The third-generation CW fiber laser source

Technical Parameter

Sheet Metal Laser Cutting Machine VIDEO

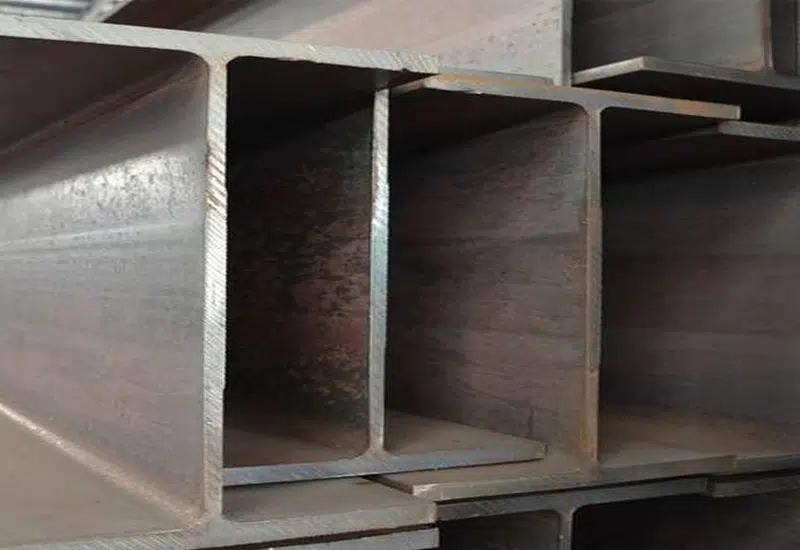

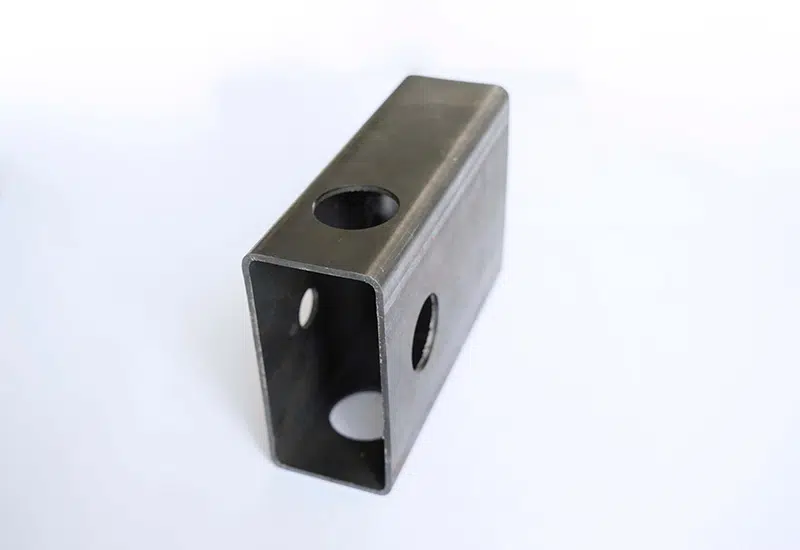

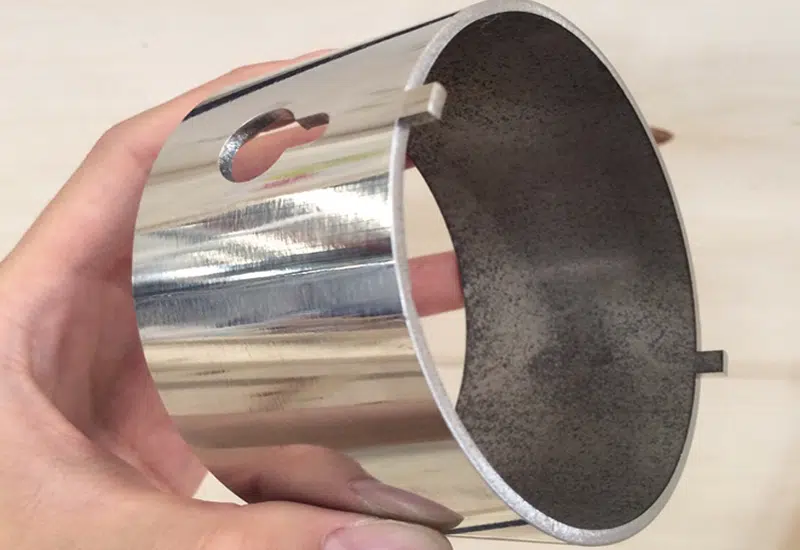

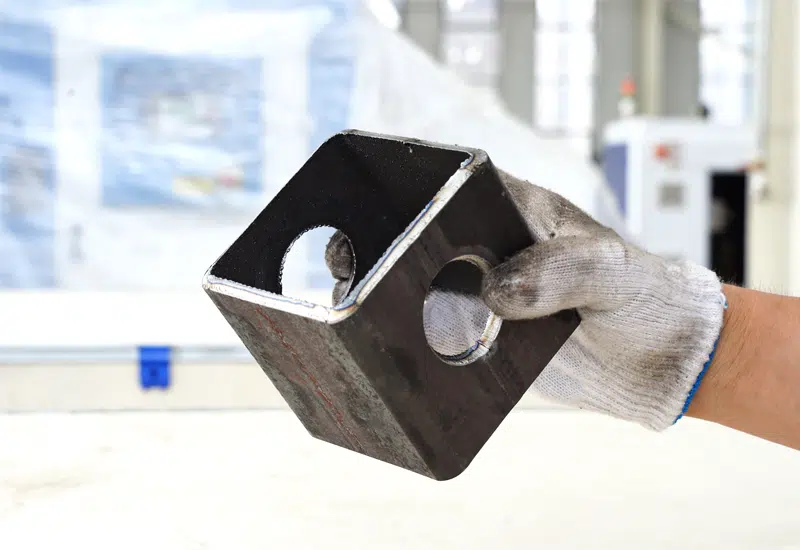

CUTTING SAMPLES
